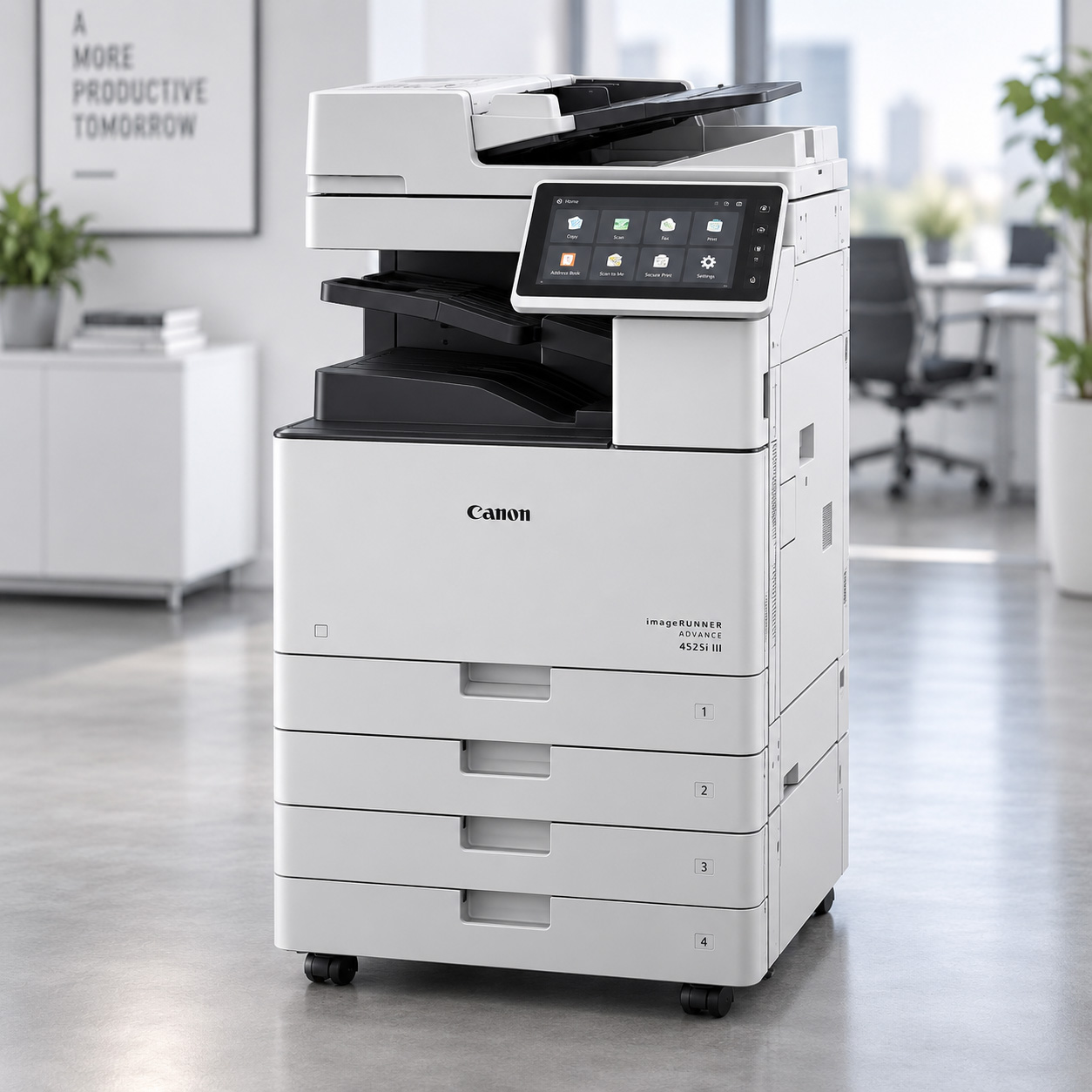

Canon iRA 4525i-III

A3 Monochrome Laser Multifunctional

Print, Copy, Scan, Send, Store and Optional Fax

Canon Dual Custom Processor (Shared)

Standard: 25.6 cm (10.1 inch) TFT LCD WSVGA Colour Touch panel

Standard: 3.0GB RAM

Standard: 250 GB
Maximum: 1 TB

Optional: 250GTB, 1 TB

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

OTHERS
Standard: USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface

Standerd: 1,200 sheets
550-sheet cassette x 2,  Multi-purpose tray :100 sheets
Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-B1and Paper Deck Unit-F1)

Standard: 250 Sheets
Maximum: 3,350 Sheets (with Buffer Pass-N1 + Staple Finisher-Y1 or Booklet Finisher-Y1)

Standard: Collate, Group
With Inner Finisher : Collate, Group, Offset, Staple, Hole Punch^*1, Staple-Free Staple, Staple On Demand
With External Finisher^*2 : Collate, Group, Offset, Staple,  Stitch^*3, Hole Punch^*4, Staple-Free Staple, Staple On Demand

*1 Requires Inner 2/F4 Hole Puncher-C1 or Inner S4 Hole Puncher-C1
*2 Requires Buffer Pass-N1
*3 Requires Booklet Finisher-Y1
*2 Requires 2/4 Hole Puncher Unit-A1 or 4 Hole Puncher Unit-A1

Paper Cassette (1/2):
Thin, Plain, Thick, Colour, Recycled, Pre-punched Multi-purpose tray:
Thin, Plain, Thick, Colour, Recycled, Pre-punched, Tranceparency, Tracing*, Label, Bond, Envelope

*Some types of tracing paper cannot be used.

Upper Cassette 1:
Standard size: A4, A4R, A5R, B4, B5, B5R
Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 390.0 mm
Lower Cassette 2:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 431.8 mm
Multi-purpose tray:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size: Min. 98.0 x 148.0 mm to 297.0 x 431.8 mm
Free Size: Min. 98.0 x 148.0 mm to 297.0 x 431.8 mm

Paper Cassettes (1/2): 60 to 128 gsm

Multi-purpose tray: 52 to 220 gsm  (Thin: vertical grain paper feed only: 52 to 59gsm)
Duplex: 60 to 105 gsm

From Power On: 24 Seconds or Less*

*Time from device power-on, until copy ready (not print reservation)

From Sleep Mode: 10 Seconds or Less
Quick Startup Mode: 4 seconds or less*

*Time from device power-on to when key operations can be performed on the touch panel display.

With platen cover: 587 x 728 x 822 mm
With Single Pass DADF-A1： 587 x 740 x 945 mm
With DADF-AV1： 587 x 750 x 926 mm

Basic：
889 x 1,160 mm (with Platen Cover Type W + + Multi-purpose tray open/extension tray extended + Paper Cassette open)
889 x 1,172 mm (with Single Pass DADF-A1 + Multi-purpose tray open/extension tray extended + Paper Cassette open)
889 x 1,182 mm (with DADF-AV1 + Multi-purpose tray open/extension tray extended + Paper Cassette open)

Fully Configured：
1,811 x 1,270 mm (with Single Pass DADF-A1 + Paper Deck Unit-F1 + Booklet Finisher-Y1 with Saddle unit drawn +Paper Cassette open)
1,811 x 1,280 mm (with DADF-AV1 + Paper Deck Unit F1 + Booklet Finisher-Y1with Saddle unit drawn +Paper Cassette open)

With Platen Cover Type W: Approx. 73 kg including toner
With Single Pass DADF-A1：Approx. 86 kg including toner
With DADF-AV1：Approx. 81 kg including toner

iR-ADV 4551i III:
51 ppm (A4), 25 ppm (A3), 37 ppm (A4R), 20 ppm (A5R)
iR-ADV 4545i III:
45 ppm (A4), 22 ppm (A3), 32 ppm (A4R), 20 ppm (A5R)
iR-ADV 4535i III:
35 ppm (A4), 22 ppm (A3), 32 ppm (A4R), 20 ppm (A5R)
iR-ADV 4525i III:
25 ppm (A4), 15 ppm (A3), 17 ppm (A4R), 17 ppm (A5R)

1,200 x 1,200

Standard: UFR II, PCL 6
Optional: Genuine Adobe PostScript Level 3

Direct printing available from USB memory, Advanced space, Remote UI and Web Access*
Supported file types: TIFF, JPEG, PDF, EPS, and XPS

*Only PDF print from websites is supported

AirPrint, Mopria, Google Cloud Print, and Canon Business Print, and uniFLOW Online
A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.
Please contact your sales representative for further information

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*2
PS fonts: 136 Roman

*1 Requires optional PCL International Font Set-A1
*2 Requires optional Barcode Printing Kit-D1

Suspend Job Timeout, Profile Settings, Secured Print, Watermark, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/ Orientations, Offsetting, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold Printing

UFRII: Windows 7 / 8.1 /10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016, MAC OS X (10.7 or later)
PCL: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016
PS: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016, MAC OS X (10.7 or later)
PPD: MAC OS X (10.7 or later), Windows 7 / 8.1/ 10

SAP Device Types are available via the SAP Market Place.
Please refer to http://www.canon-europe.com/support/business-product-support  for availability of print solutions for other operating systems and environments including AS/400, UNIX, Linux and Citrix.
Some of these solutions are chargeable.

iR-ADV 4551i III:
51 ppm (A4), 25 ppm (A3), 37 ppm (A4R), 20 ppm (A5R)
iR-ADV 4545i III:
45 ppm (A4), 22 ppm (A3), 32 ppm (A4R), 20 ppm (A5R)
iR-ADV 4535i III:
35 ppm (A4), 22 ppm (A3), 32 ppm (A4R), 20 ppm (A5R)
iR-ADV 4525i III:
25 ppm (A4), 15 ppm (A3), 17 ppm (A4R), 17 ppm (A5R)

iR-ADV 4551i III: Approx. 3.7 seconds or less
iR-ADV 4545i III/4535i III: Approx. 3.8 seconds or less
iR-ADV 4525i III: Approx. 5.2 seconds or less

Reading: 600 x 600
Printing: Up to 1,200 x 1,200

Up to 9,999 copies

Automatic or Manual (9 Levels)

25% – 400% (1% Increments)

25%, 50%, 70%

141%, 200%, 400%

Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel

Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Store in Mail Box, Superimpose Image, Cascade Copy, Copy ID Card, Skip Blank Pages, Detect Feeder Multi Sheet Feed, Free Size Original

Single-pass Duplexing Automatic Document Feeder*(DADF-A1) or Duplexing Automatic Document Feeder (DADF-AV1) [2-sided to 2-sided (Automatic with DADF)]

* Detect Feeder Multi Sheet Feed is supported.

SINGLE PASS DADF-A1：150 Sheets
DADF-AV1：100 Sheets

Platen: Sheet, Book, 3-Dimensional Objects (Height: Up to 50 mm, Weight: up to 2kg)

Document Feeder media weight :
SINGLE PASS DADF-A1：
1-sided scanning: 38 to 157 gsm (BW) , 64 to 157 gsm (CL)
2-sided scanning: 50 to 157 gsm (BW) , 64 to 157 gsm (CL)
DADF-AV1：
1-sided scanning: 38 to 128 gsm (BW) , 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW) , 64 to 128 gsm (CL)

Platen: max. scanning size: 297.0 x 431.8 mm
Document Feeder media size:
Single Pass DADF-A1: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6R, Custom size: 128.0 x 139.7 mm to 304.8 x 431.8 mm
DADF-AV1: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6, Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm

SINGLE PASS DADF-A1：
1-sided Scanning: 80 /80 (300pi), 80 (BW: 600 dpi)
2-sided Scanning: 160 /160 (300pi), 150 (BW: 600 dpi)
DADF-AV1：
1-sided Scanning: 70 /70 (300pi), 51 (BW: 600 dpi)
2-sided Scanning: 35 /35 (300pi), 25.5 (BW: 600 dpi)

600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows 7/8.1/10
Windows Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016

Send functionality available on all models
Scan to USB Memory Key: Available on all models
Scan to Mobile Devices and cloud-based services: A range of solutions is available to provide scanning to mobile devices or cloud-based services depending on your requirements. Please contact your sales representative for further information.
TWAIN/WIA Pull scanning available on all models

E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional)

LDAP (2,000)/Local (1,600)/Speed dial (200)

600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100

File: FTP (TCP/IP), SMB v3.0, WebDAV
E-mail/I-Fax: SMTP, POP3

Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b, Encrypted), XPS (Compact, Searchable), Office Open XML (PowerPoint, Word), PDF/XPS(Device Signature)
Optional: PDF (Trace & Smooth), PDF/XPS(User Signature)

Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Sender’s Name (TTI),  Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank, Detect Feeder Multi Sheet Feed

Optional on all models

2

Super G3: 33.6 kbps
G3: 14.4 kbps

MH, MR, MMR, JBIG

400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi

A3, A4, A4R, A5^*1, A5R^*1, B4,  B5^*2, B5R^*1

*1 Sent as A4
*2 Sent as B4

Up to 30,000 pages

Max. 200

Max. 199 dials

Max. 256 addresses

Yes

Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density (for Scanning), Sharpness, Copy Ratio, Erase Frame, Job Build, Sender’s Name (TTI), Selecting the Telephone Line, Direct Send, Delayed Send, Preview,Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed

100 User Inboxes, 1 Memory RX Inbox
50 Confidential Fax Inboxes
30,000 Maximum Pages Stored

Communication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 7/8.1/10)
Concurrent Connections (Max.): SMB: 64, WebDAV: 3 (Active Sessions)

Approx. 16 GB (Standard HDD)
Approx. 480 GB (with option 1TB HDD)

Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support

Standard: USB Memory

Standard: Universal Login Manager (Device and Function Level Log-in), uniFLOW Online Express*, User Authentication, Department ID Authentication, Access Management System
Optional: My Print Anywhere secure print (Requires uniFLOW)

*No charge for this solution; however activation is required.

Standard:  Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated), Common Criteria Certification (DIN ISO 15408)
Optional:  Hard Disk Drive Mirroring, Hard Disk Drive removal, Data Loss Prevention (Requires uniFLOW)

Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME

Standard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device signature, Secure Watermarks
Optional:  User signature, Document Scan lock

Temperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)

iR-ADV 4551i: 220-240 V (±10 %), 50/60 Hz (±2 Hz), 5.6 Amp
iR-ADV 4545i/4535i: 220-240 V (±10 %), 50/60 Hz (±2 Hz), 5.2 Amp
iR-ADV 4525i: 220-240 V (±10 %), 50/60 Hz (±2 Hz), 4.3 Amp

Maximum: Approx.  1,500 W
Printing: iR-ADV 4551i III: 882 W^*1. iR-ADV 4545i III: 862 W^*1, iR-ADV 4535i III: 783 W^*1, iR-ADV 4525i III: 614 W^*1
Standby: Approx. 37 W^*1
Sleep mode: Approx. 0.9 W^*2
Plugin Off: Approx. 0.3W^*3

*1 Reference value: measured one unit
*2 0.9W sleep mode may not be possible in all circumstances due to certain settings.
*3 Reference value, Quick startup mode OFF

Sound Power Level (LwAd)
Active(BW): iR-ADV 4551i III: 73.8 dB or Less^*1, iR-ADV 4545i III: 73.1 dB or Less^*1, iR-ADV 4535i III: 71.8 dB or Less^*1, iR-ADV 4525i III: 70.2 dB or Less^*1,
Standby: iR-ADV 4551i III: 37 dB, iR-ADV 4545i III: 37 dB^*2, iR-ADV 4535i III:  36 dB^*2, iR-ADV 4525i III: 36　dB^*2

Sound Pressure (LpAm)
Bystander’s position:
Active(BW) (1-sided/2-sided):
iR-ADV 4551i III: 54 dB/56 dB^*2
iR-ADV 4545i III: 51 dB/56 dB^*2
iR-ADV 4535i III: 51 dB/54 dB^*2
iR-ADV 4525i III: 50 dB/52 dB^*2
Standby:
iR-ADV 4551i III/4545i III:21 dB^*2
iR-ADV 4535i III/4525i III 20 dB^*2

*1 DE-UZ205 (2017) compliant (Data taken from Blue Angel Standard value)
*2 Reference value: Measured only one unit with ISO7779, described with ISO9296 (1988)

Blue Angel

C-EXV 53 TONER BK

C-EXV 53 TONER BK: 42,100 pages

Universal Login Manager (ULM): Manage your costs easily by using the embedded reporting capability to identify and control costs on a user-based level by device.
uniFLOW Online Express: Combining with ULM you can gain further control and highlight expenditures per users/department and pinpoint where costs can be scaled down from a central cloud based location.

iW Management Console:
Server-based software for centralised management of a fleet of devices (includes monitoring or consumables, status monitoring and alerts, distribution of address books, configuration settings, firmware and MEAP applications, meter capture and reporting, driver and resource management)
eMaintenance:
Compatible with eMaintenance services via embedded RDS (Enables meter capture, automatic consumables management, remote diagnostics and reporting for service providers to offer efficient, fast and proactive maintenance)
Content Delivery System:
Allows the Remote distribution of firmware, iR options and MEAP applications; Remote User Interface (RUI) Web based interface to each device that helps to provide remote device management and control

Network ScanGear:
TWAIN-compliant scanner driver that enables computers on a network to use the pull scan functionality of the device

Canon Driver Configuration Tool:
A utility for changing the factory default settings of Canon print drivers
NetSpot Device Installer:
Simple utility software that allows you to make network protocol settings for Canon devices connected to your network.

MEAP (Multifunctional Embedded Application Platform):
A powerful JAVA Embedded Platform for Canon devices which provides tight coupling between a range of software solutions and the device.
MEAP Web:
Web service alternative to MEAP that allows MFP applications to be developed and deployed via web services

IW DESKTOP:
Powerful print publishing software which easily combines documents from different sources and file formats, applies finishing with preview and templates to create professional looking documents. Includes PDF creation, annotation and compression capabilities for simple digital workflows such as proofing and authorisation

Paper Capacity: 550 sheets x 2 (80 gsm)
Paaper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched
Paper Size: A3, A4, A4R, A5R, B4, B5R, B5, Custom size: 139.7 x 182.0 mm to 297.0 x 431.8 mm
Paper Weight: 60 to 128 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 650 x 248 mm (attached to the main unit)
Weight: Approx. 23.5 kg

Paper Capacity: 2,450 sheets (80 gsm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched
Paper Size: A4
Paper Weight: 60 to 128 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 650 x 248 mm (attached to the main unit)
Weight: Approx. 28 kg

Paper Capacity: 2,700 sheets (80 gsm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched
Paper Size: A4, B5
Paper Weight: 60 to 128 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit)
Weight: Approx. 31 kg

Allows the separation of copies, prints and faxes. Adds a second internal output tray to give a combined output capacity of 350 sheets (upper tray 100 sheets/lower tray 250 sheets).

Number of Trays: 2
Upper Tray Capacity*: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 45 sheets
Lower Tray Capacity*: A4, A5, A5R, B5: 500 sheets, A3, A4R, B4, B5R 250 sheets, A6R: 30 sheets

*with 81.4 gsm paper

Paper Weight: 52 to 220 gsm
Staple Position: Corner, Double
Staple Capacity: Corner and Double Stapling:
A4/B5: 50 sheets (52 to 90 gsm)
A3/A4R/B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3/A4/B4/B5: 5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (81.5 to 105 gsm)
Staple On Demand:
40 sheets (80 gsm)
Dimensions (W x D x H): 604 x 535 x 205 mm (when the extension tray is extended)
Weight: Approx. 7.3 kg

(Requires Buffer Pass-N1)
Number of Trays: 2
Upper Tray Capacity*: A4, A5, A5R, A6R, B5: 250 sheets, A3, A4R, B4, B5R: 125 sheets,
Lower Tray Capacity*: A4, A5, A5R, B5: 3,000 sheets, A3, A4R B4, B5R: 1,500 sheets, A6R: 250 sheets (52 to 105 gsm), 50 sheets (106 to 220 gsm)

*with 81.4 gsm paper

Paper Weight: 52 to 220 gsm
Staple Position: Corner, Double
Staple Capacity: Corner and Double Stapling:
A4/B5: 50 sheets (52 to 90 gsm)
A3/A4R/B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3/A4: 5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (81.5 to 105 gsm)
Staple On Demand: 50 sheets (90 gsm)
Dimensions (W x D x H): 637 × 623 × 1,142 mm (when the extension tray is extended)
Weight: Approx. 31 kg

(Requires Buffer Pass-N1)
(Includes the above STAPLE FINISHER-Y1 basic staple specifications.) Saddle Stitch paper size: A3, A4R, B4, Custom Size (195.0 x 270.0 mm to 297.0 x 431.8 mm)
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (60 to 81.4 gsm) (including 1 cover sheet up to 220 gsm)
Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm)
Dimensions (W x D x H): 637 mm × 623 mm × 1,142 mm (when the extension tray is extended)
Weight: Approx. 57 kg

(Requires the INNER FINISHER-J1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 220 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, B4, B5, B5R
Four holes A3, A4
Power Source: From the Main Unit

(Requires the INNER FINISHER-J1)
Four Holes
Acceptable Punch Paper Weight: 52 to 220 gsm
Acceptable Punch Paper Size: Four holes A3, A4, A4R, B4, B5, B5R
Power Source: From the Main Unit

(Requires either the STAPLE FINISHER-Y1 or BOOKLET FINISHER-Y1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 220 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Four holes A3, A4
Power Source: From the Main Unit

(Requires either the STAPLE FINISHER-Y1 or BOOKLET FINISHER-Y1)
Four Holes
Acceptable Punch Paper Weight: 52 to 220 gsm
Acceptable Punch Paper Size: Four holes A3, A4, A4R, A5, B4, B5, B5R
Power Source: From the Main Unit

MiCARDPLUS FOR ULM – A proximity card reader for card based user authentication, supporting multiple card technologies (HID, HiTag, Casi Rusco, Indala and MiFare etc.). Integrates with Universal Login Manager and uniFLOW

COPY CARD READER-F1 – Magnetic physical card access system. (Integrates with Department ID, not for use with uniFLOW)

COPY CARD READER ATTACHMENT-B5 – Attachment kit for Copy Card Reader-F1 only.

STAMP INK CRG-C1 – Ink cartridge for printing stamps on scanned and sent originals

STAMP UNIT-B1

UTILITY TRAY-B1 – Additional tray to hold an external USB keyboard.

INSTANT STAPLER-A1 – Portable stapler that allows instant stapling of up to 50 sheets.

DOCUMENT SCAN LOCK KIT-B2 – Increases document security by embedding hidden track and lock code within copied or printed documents to restrict unauthorised copying, sending, and faxing

HDD MIRRORING KIT-J1 – Enables replication of data in case of disk hardware failure so that data can be recovered.

2.5INCH/250GB HDD-N1 – Additional HDD required for the hard disk mirroring function.

2.5INCH/1TB HDD-P1 – A replacement HDD to increase the storage space on the device. Note: The mirroring function requires a second 1TB HDD.

REMOVABLE HDD KIT-AL1 – Allows the physical removal of the Hard Disk Drive when the device is not in use to protect confidential data

PCL INTERNATIONAL FONT SET-A1 – Adds PCL support for Andalé Mono WT J/K/S/T (Japanese/Korean/Simplified Chinese/Traditional Chinese).

PS PRINTER KIT-BG1- Provides networked printing support for Adobe PostScript 3 printing.

UNIVERSAL SEND DIGITAL USER SIGNATURE KIT-C1 – Ensures the authenticity of a PDF/XPS by identifying the user that sent the document through a visible and/or invisible digital signature.

UNIVERSAL SEND TRACE & SMOOTH PDF KIT-A1 – Enables the device to create and send Trace and Smooth PDF

BARCODE PRINTING KIT-D1 – Provides the ability to print 1D and 2D barcodes on output using jet caps technology.

COPY CONTROL INTERFACE KIT-A1: Allows connection (CCVI I/F) between 3rd party copy control terminal and Canon’s iR-ADV range for cost recovery use.
SERIAL INTERFACE KIT-K3 – Serial interface for Cost Recovery Solutions.
CONNECTION KIT – A1 for BLUETOOTH LE- Bluetooth chip is an option for enabling the communication between main unit and other devices using Bluetooth
NFC CONTROL PANEL-C1 – NFC Control Panel is optional kit enabling the communication between main unit and other devices using NFC. For Flat panel

SUPER G3 FAX BOARD-AS1 – Adds fax functionality.
SUPER G3 2ND LINE FAX BOARD-AS1 – Adds second fax line
REMOTE FAX KIT-A1 – Enables the device to send and receive fax from another device connected with a fax board.
IP FAX EXPANSION KIT-B1 – (Requires Super G3 FAX Board-ASF1) Enables users to send and receive Fax documents via IP Fax network

ADF ACCESS HANDLE-A1 – Attaches to the document feeder, making access easier for seated users.
VOICE GUIDANCE KIT-G1 – Recorded voice provides confirmation of basic menu settings, making the system easier to use for the visually impaired.
VOICE OPERATION KIT-D1 – Enables the user to set various functions on the device using verbal instructions and audible feedback.

STAPLE-P1 – For stapling (2 x 5,000 pcs)

STAPLE CARTRIDGE-Y1 – For saddle stitching (2 x 2,000 pcs)
